4003

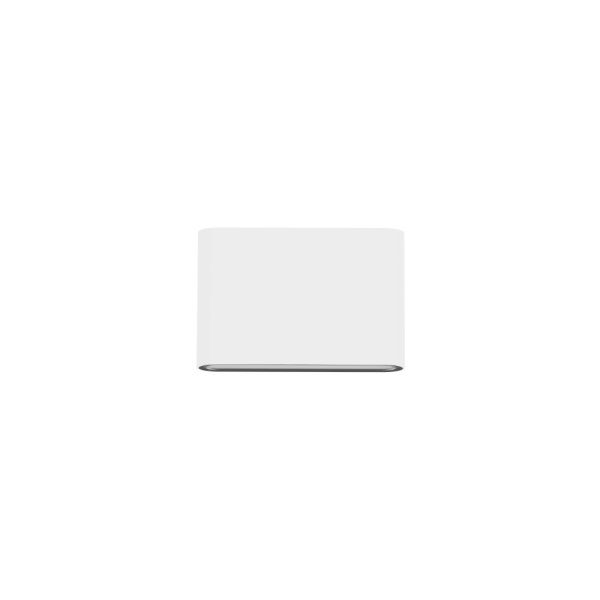

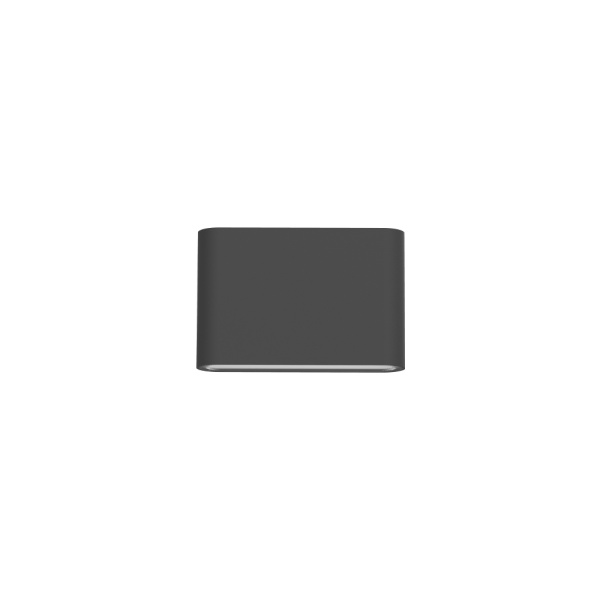

Wall-mounted pendant luminaire for indoor or outdoor application, with downward and upward light projection. Body in brushed or painted stainless steel. Lenses diffuser. Incorporated driver.
General Information
Application
Outdoor
Outdoor
General led color
Optional
Optional
Mounting Type
Wall Surface
Wall Surface
IK
IK08
IK08
IP
IP65
IP65
CRI
>80
>80
Class
I
I
Shape
Rectangular
Rectangular
Driver
LED driver included
LED driver included
MacAdam
<6
<6
Measures
135x90x30 | 175x90x30
135x90x30 | 175x90x30
Standards
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
120º
120º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
50000h
50000h
Light Source
LED
LED
Light projection
Downward and upward light projection
Downward and upward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Luminous flux Maintenance
L70B50
L70B50
