6502

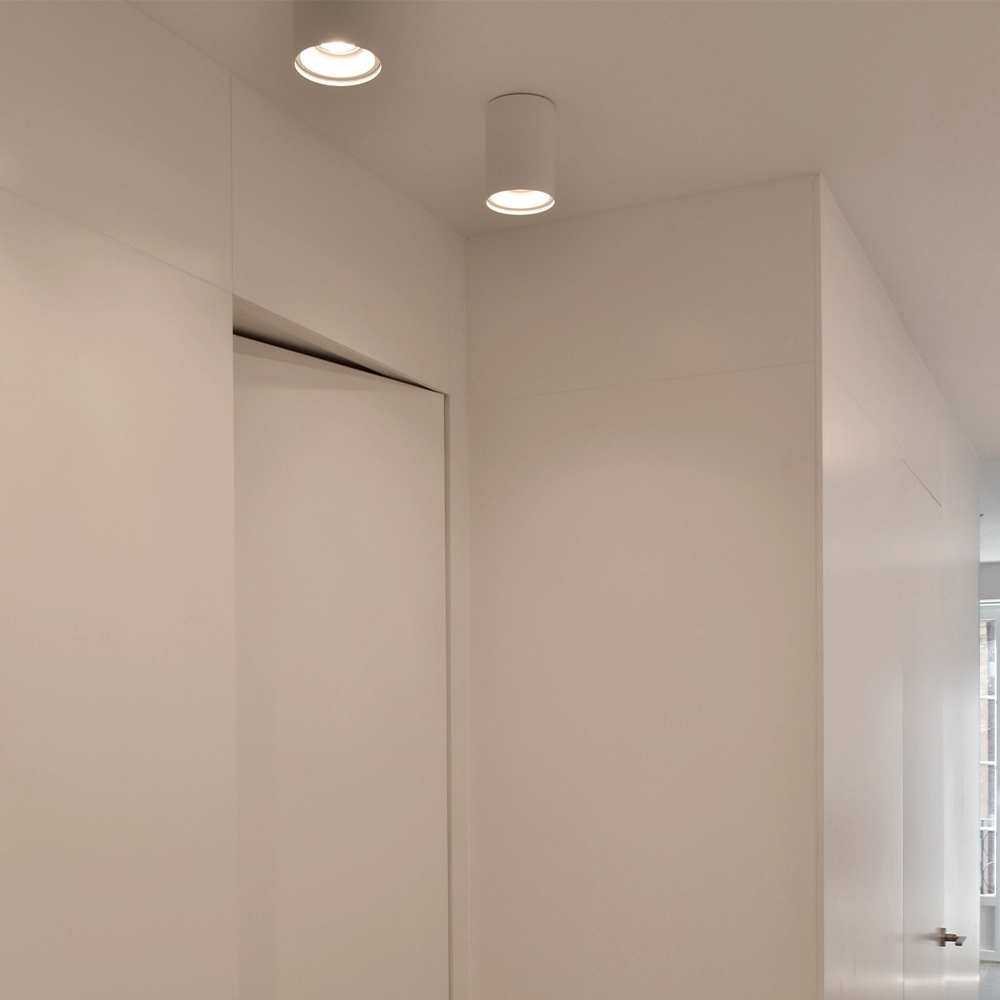

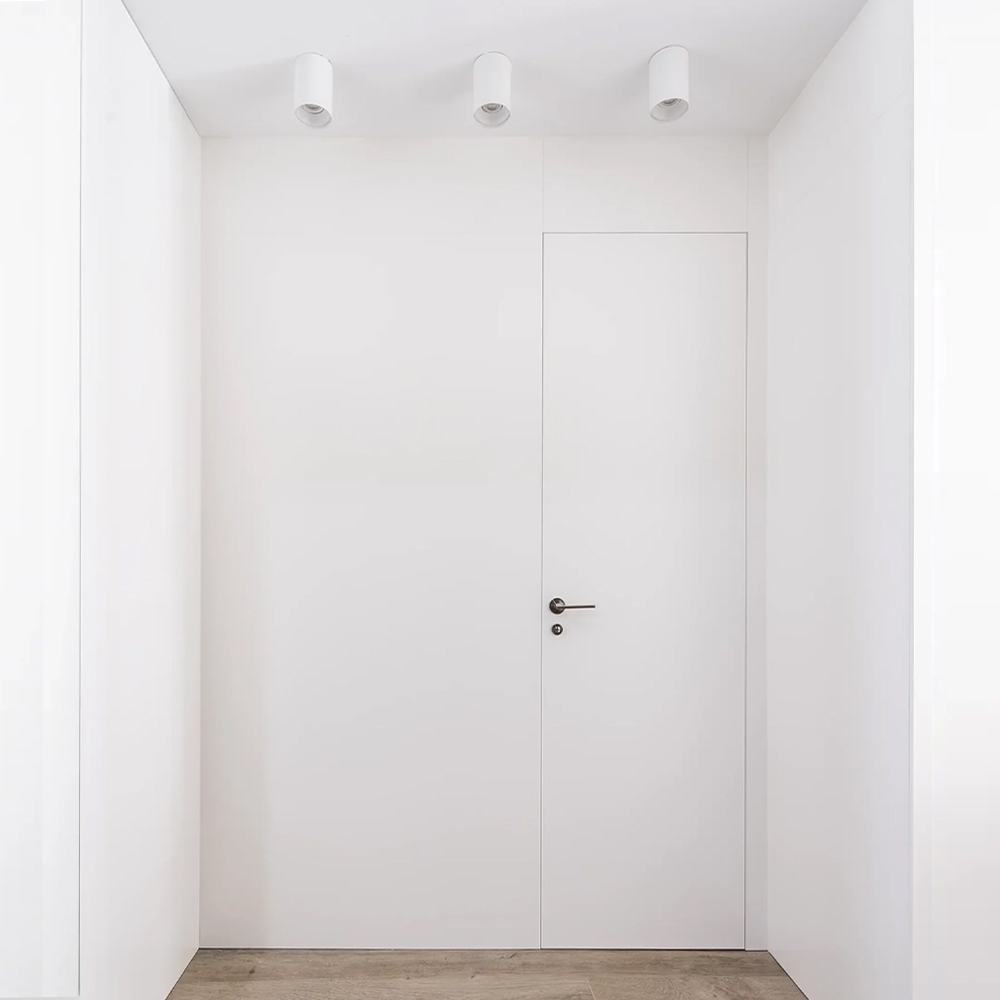

Surface luminaire for indoor application, with downward light projection. Extruded aluminum body with the possibility of painting in different colors. Transparent glass diffuser.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Surface
Ceiling Surface
IK
IK03
IK03
IP
IP54
IP54
CRI
GU10: 90; COB: >80
GU10: 90; COB: >80
UGR
GU10: <22; COB: <15
GU10: <22; COB: <15
Class
II
II
Shape
Circular
Circular
Driver
Remote driver included, DALI not integrated in the luminaire
Remote driver included, DALI not integrated in the luminaire
MacAdam
GU10: <6; COB: 3
GU10: <6; COB: 3
Measures
Ø100x150
Ø100x150
Standards
EN 60598-1;
EN 60598-2-1
EN 60598-1;
EN 60598-2-1
Beam Angle
GU10: 35º; COB: 60º
GU10: 35º; COB: 60º
Directives
RoHS; 2014/35/EU
RoHS; 2014/35/EU
Average Life
GU10: 25000h; COB: 55000h
GU10: 25000h; COB: 55000h
Light Source
LED GU10 | COB
LED GU10 | COB
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
GU10: F; COB: E
GU10: F; COB: E
Luminous flux Maintenance
GU10: L70
GU10: L70
