6272

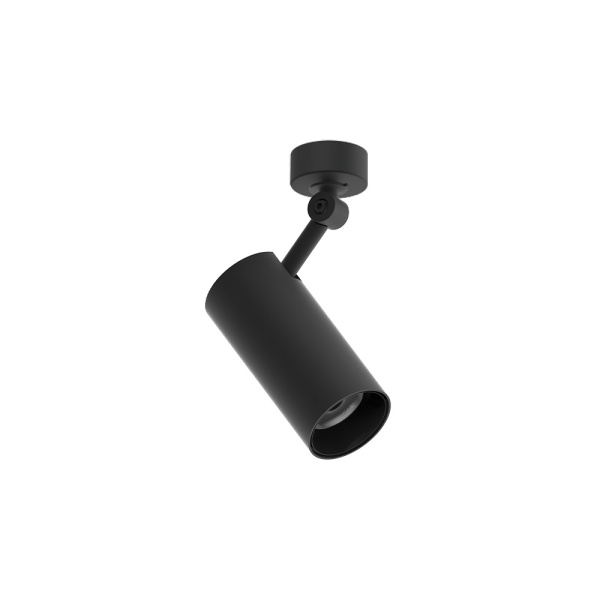

Projector for indoor use, with adjustable light projection. Two types of adjustable orientation. Aluminium body. Transparent diffuser. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Surface
Ceiling Surface
IK
IK03
IK03
IP
IP20
IP20
CRI
COB: 90
COB: 90
UGR
COB: <19
COB: <19
Class
I
I
Shape
Circular
Circular
MacAdam
COB: 2
COB: 2
Measures
Ø 65,8 x 140
Ø 65,8 x 140
Standards
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
COB: 34º
COB: 34º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
COB: 50000h
COB: 50000h
Light Source
COB
COB
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
COB: E
COB: E
Luminous flux Maintenance
COB: L80B20
COB: L80B20
