5047

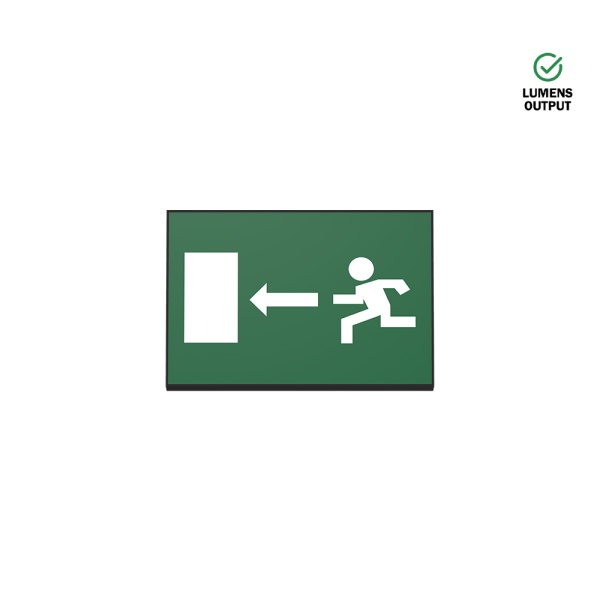

Wall surface emergency luminaire for indoor application with downward light projection.Injected aluminium body with the possibility of painting in different colors. Acrylic diffuser with pictogram of your choice. Incorporated driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Surface
Ceiling Surface
IK
IK07
IK07
IP
IP40
IP40
CRI
80 | 90
80 | 90
Kit
3H - Permanent (P) or Non-Permanent (NP)
3H - Permanent (P) or Non-Permanent (NP)
UGR
<22
<22
Class
I
I
Shape
Rectangular
Rectangular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
600 x 400
600 x 400
Standards
EN 60598-1; EN 60598-2-1; EN 62471; EN 60598-2-22; EN 1838
EN 60598-1; EN 60598-2-1; EN 62471; EN 60598-2-22; EN 1838
Beam Angle
107º
107º
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Front light projection
Front light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
