4012

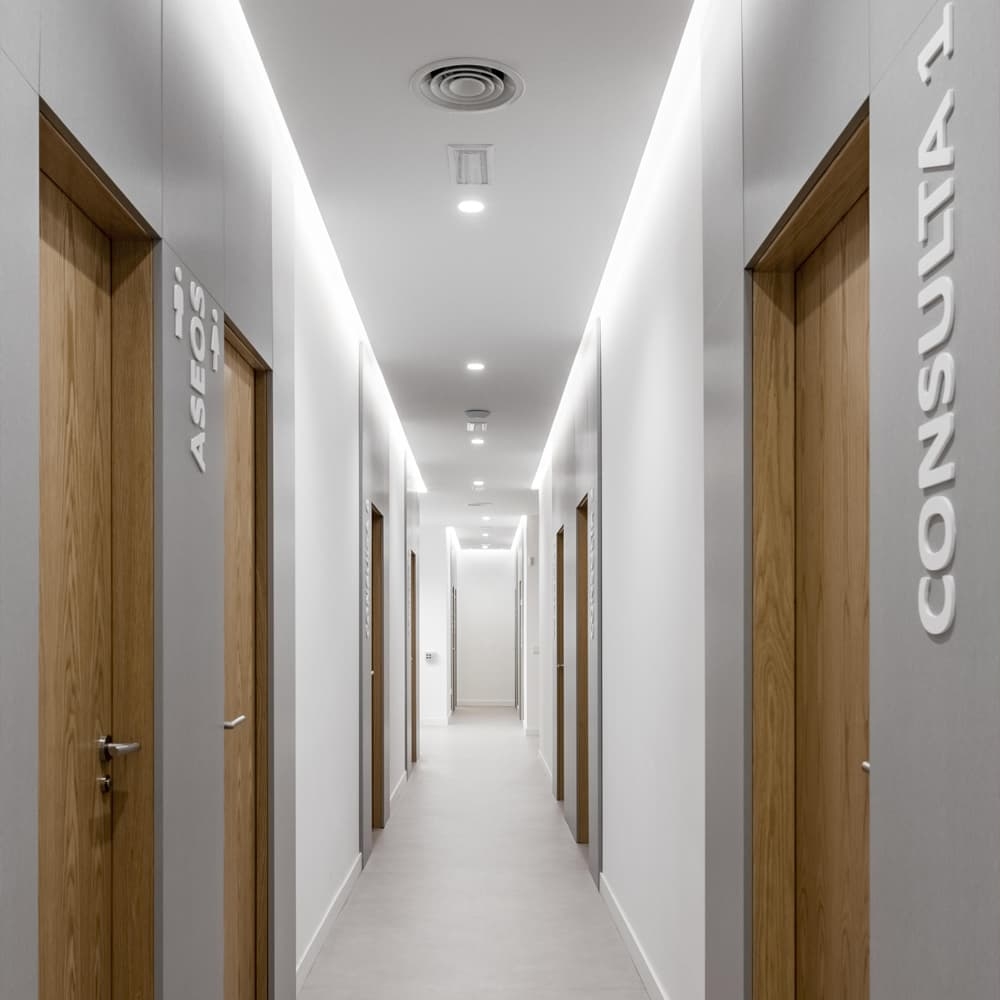

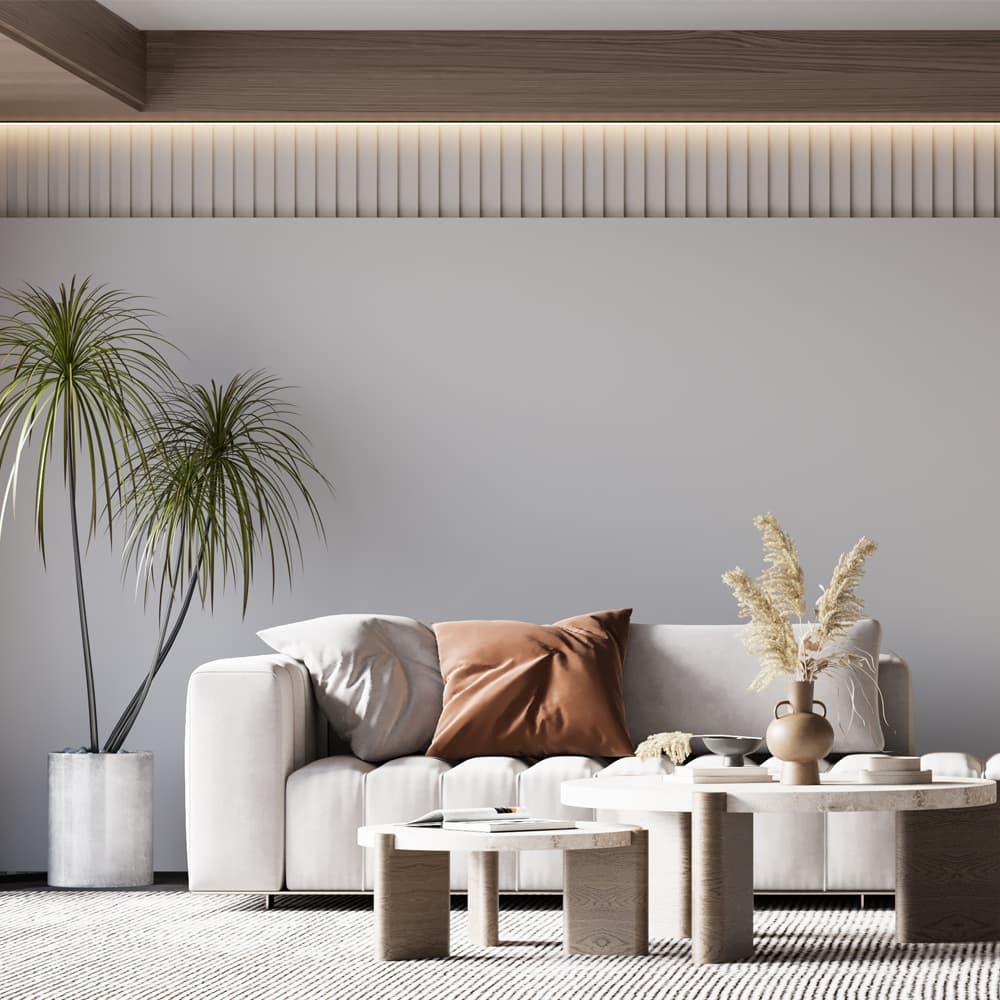

Continuous light line without shadow for molding application in interior spaces, with upward light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser in opaline version. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Surface
Ceiling Surface
IK
IK04
IK04
IP
IP40
IP40
CRI
80
80
UGR
22
22
Class
I
I
Shape
Rectangular
Rectangular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
26 x L x 25
26 x L x 25
Standards
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
100º
100º
Directives
2014/30/EU 2014/35/EU 2012/19/EU
2014/30/EU 2014/35/EU 2012/19/EU
Average Life
80000h
80000h
Light Source
LED Module
LED Module
Light projection
Upward light projection
Upward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L80B10
L80B10
