7538

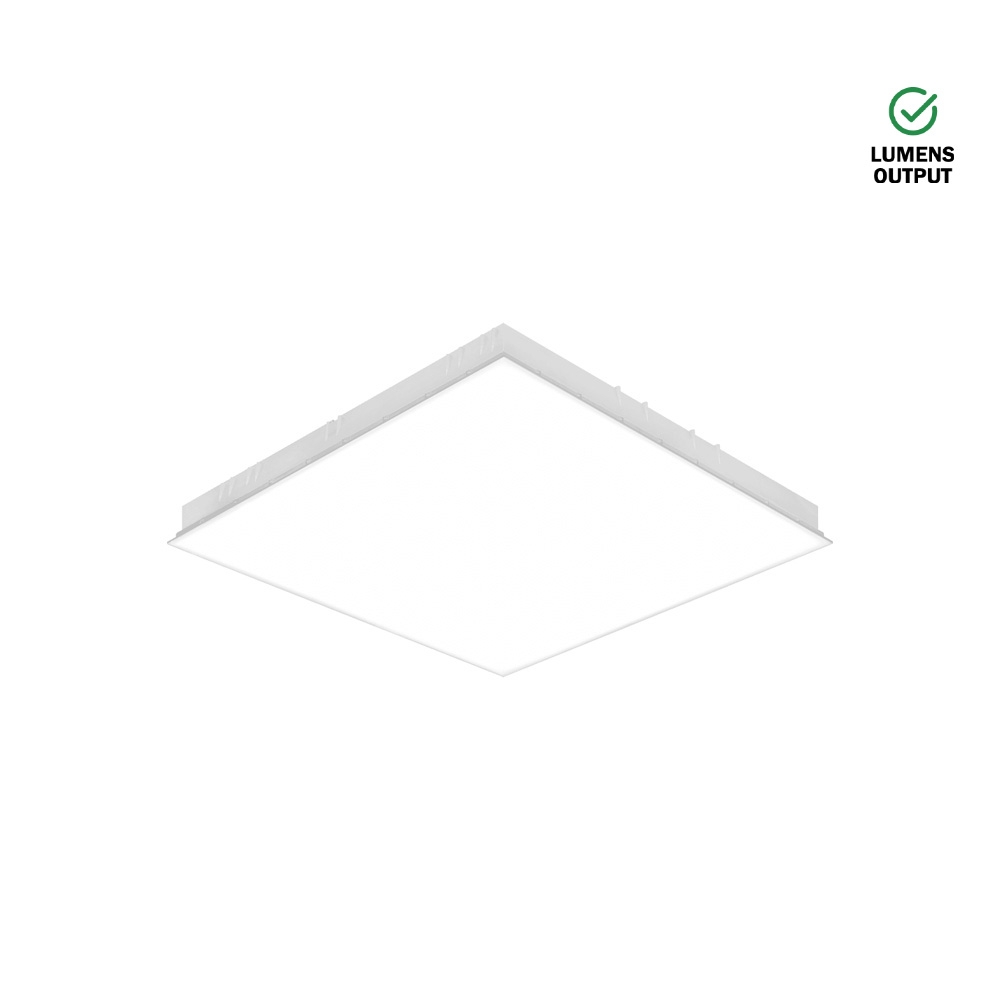

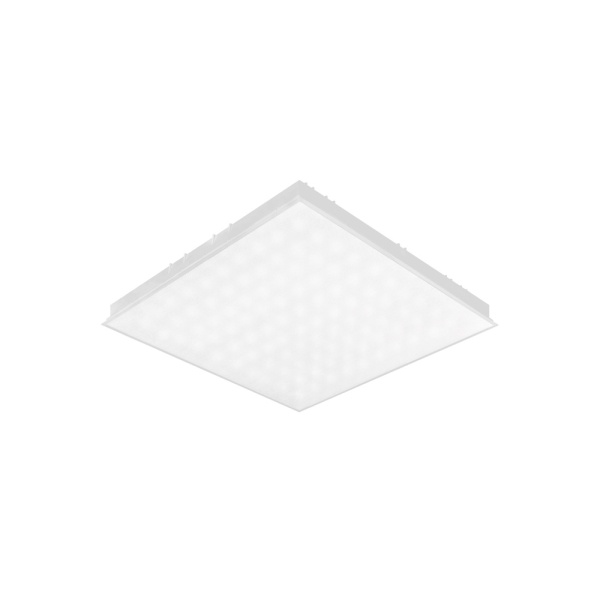

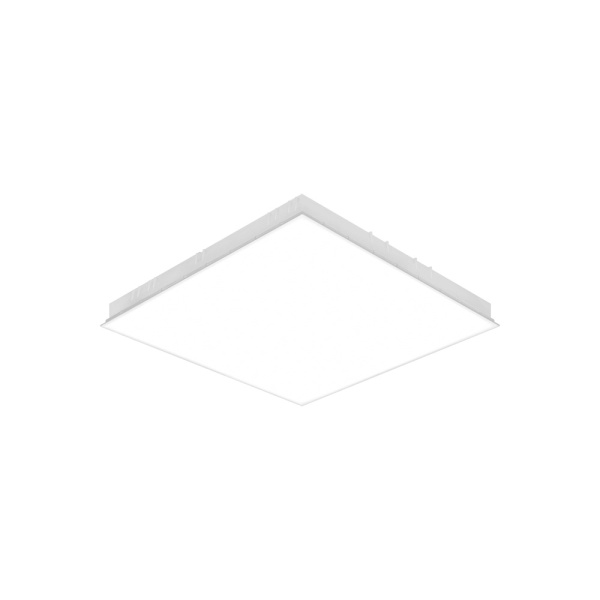

Recessed trim luminaire for indoor application, with downward light projection. Extruded aluminum body. Polycarbonate diffuser in opaline or prismatic version. Incorporated driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK07
IK07
IP
IP65
IP65
CRI
>80
>80
UGR
19
19
Class
II
II
Shape
Square
Square
Driver
Incorporated
Incorporated
MacAdam
<3
<3
Measures
595 x 595 x 71
595 x 595 x 71
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
104º
104º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
84000h
84000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L80B20
L80B20
