6198-300

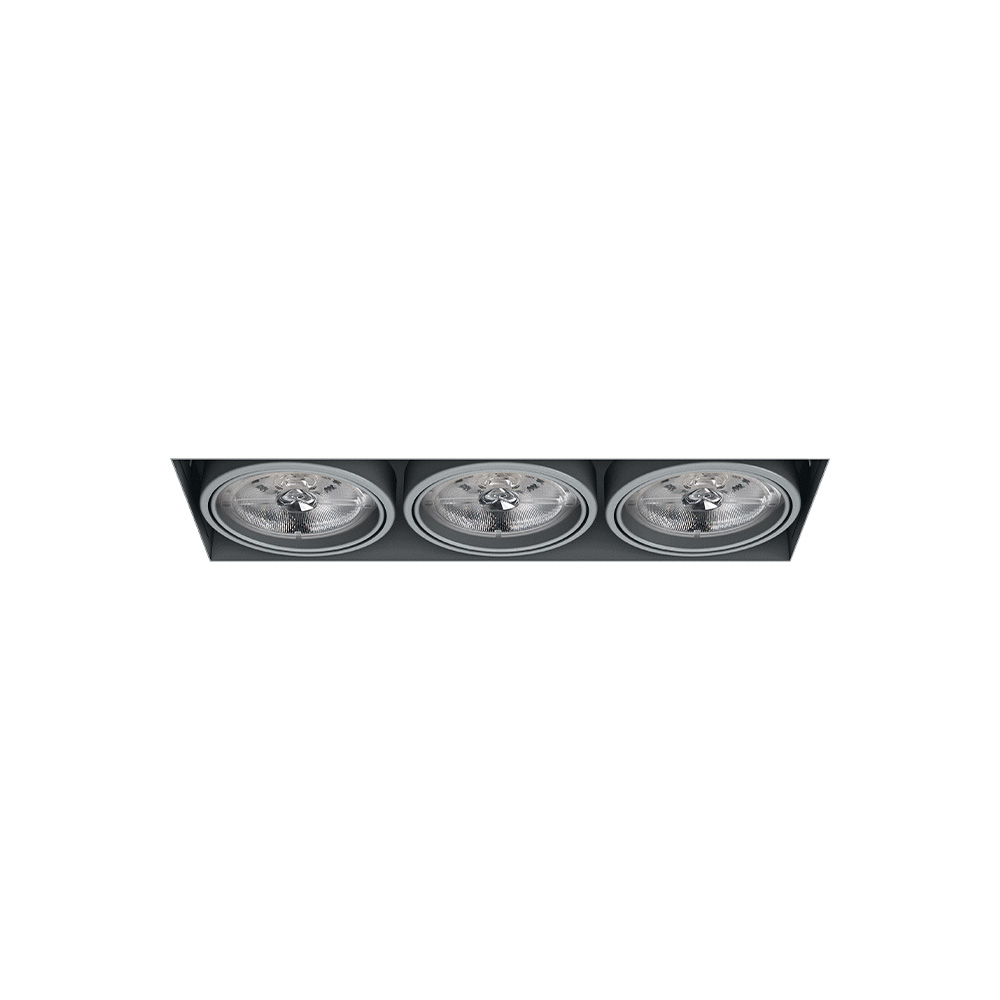

Trimless recessed luminaire for indoor application, with orientable light projection. Body in painted galvanized steel plate.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK02
IK02
IP
IP20
IP20
Class
I
I
Shape
Rectangular
Rectangular
Driver
COB Remote driver included, not integrated in the luminaire
COB Remote driver included, not integrated in the luminaire
Measures
455x155 F155x455
455x155 F155x455
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Light Source
LED GU10 AR111 | COB
LED GU10 AR111 | COB
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
