6019-300

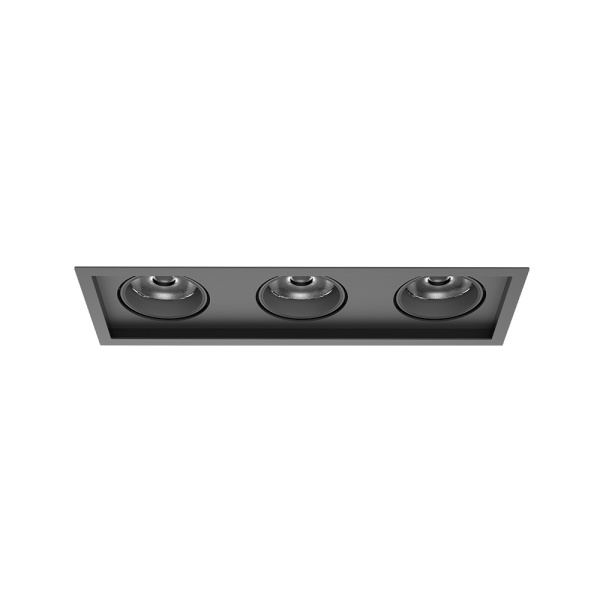

Recessed trim luminaire for indoor application, with orientable light projection. Aluminum body with the possibility of painting in different colors.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK03
IK03
IP
IP20
IP20
CRI
COB: >80
COB: >80
UGR
COB: <15
COB: <15
Class
III
III
Shape
Rectangular
Rectangular
Driver
COB Remote driver included, not integrated in the luminaire
COB Remote driver included, not integrated in the luminaire
MacAdam
COB: 3
COB: 3
Measures
290x100 F277x87
290x100 F277x87
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
COB: 60º
COB: 60º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
COB: 55000h
COB: 55000h
Light Source
COB
COB
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
COB: E
COB: E
