5550

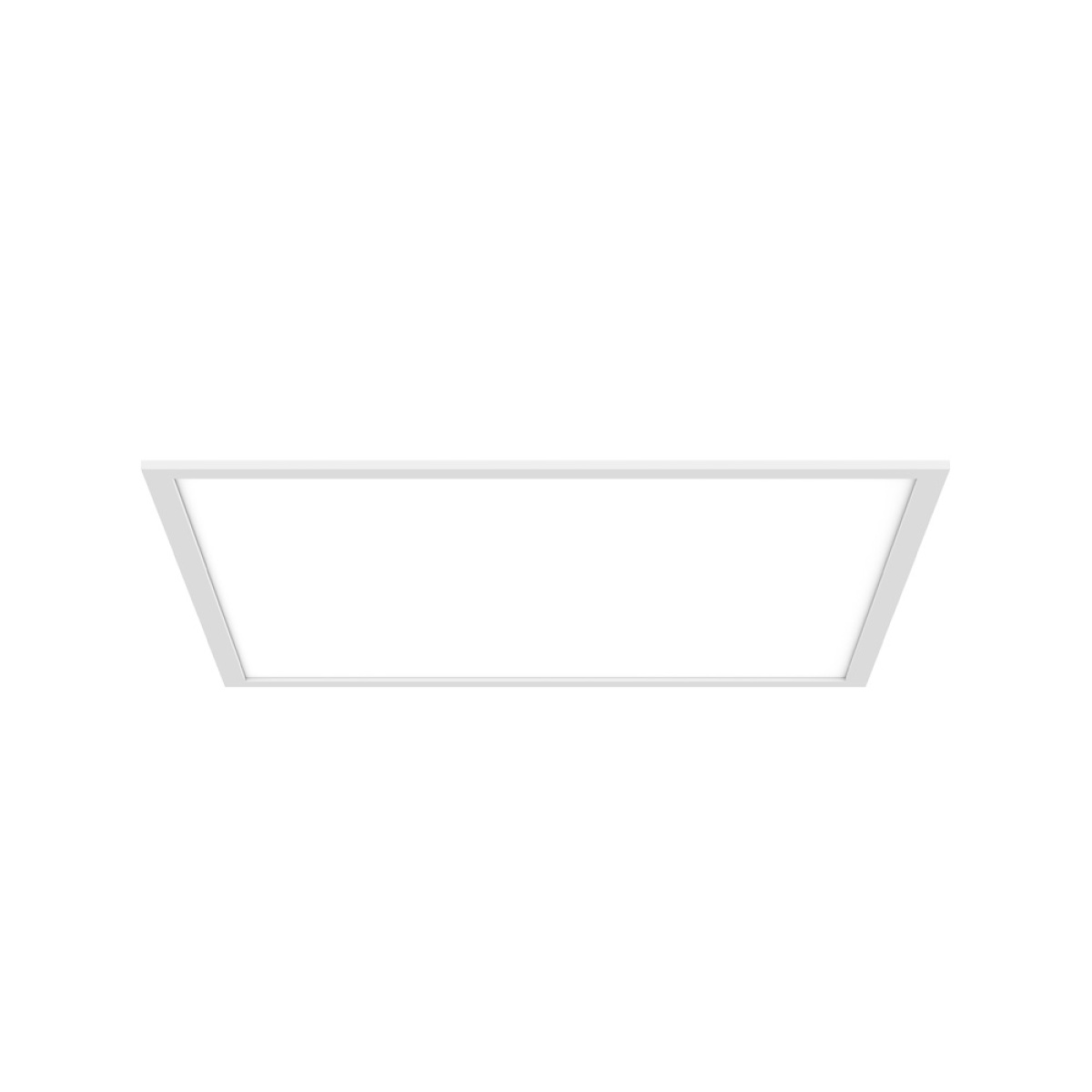

Panel luminaire for direct mounting on suspended ceilings with reticular measurement of 600. Aluminium body. Standard diffuser PMMA prismatic or opaline. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK02
IK02
IP
IP40
IP40
CRI
80
80
UGR
<22
<22
Class
I
I
Shape
Square or Rectangular
Square or Rectangular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
<6
<6
Measures
295 x 295 x 9
295 x 295 x 9
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
>50000h
>50000h
Light Source
LED Panel
LED Panel
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
