5547

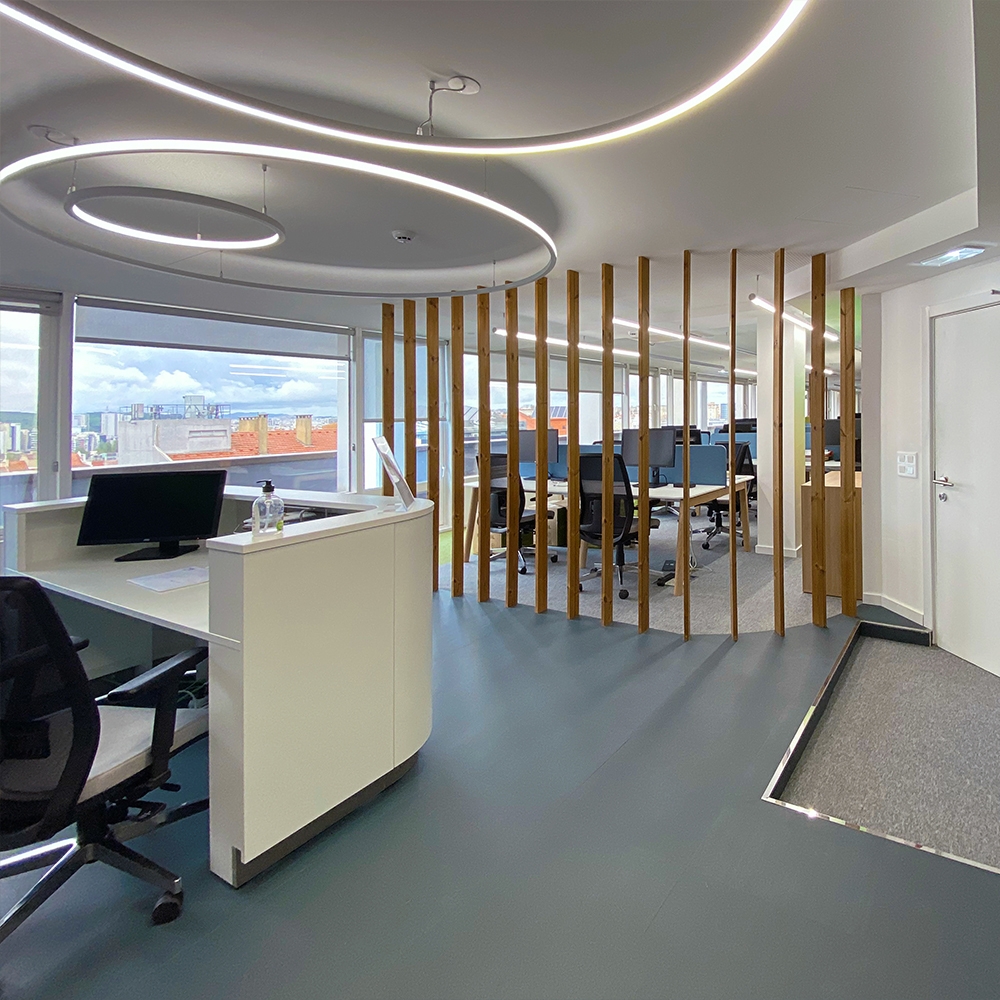

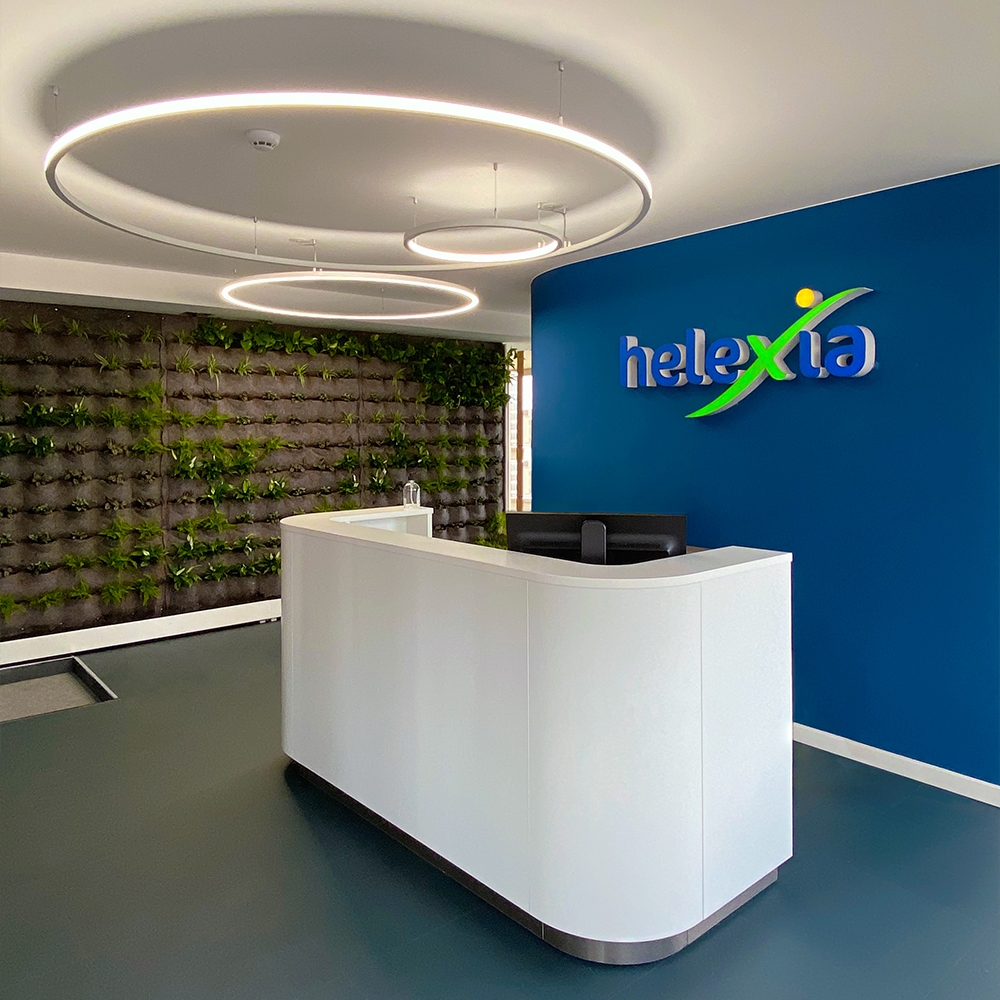

Suspended luminaire for indoor application, with exterior light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser in opaline version. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Pendant
Ceiling Pendant
IK
IK03
IK03
IP
IP20
IP20
CRI
80
80
UGR
22
22
Class
III
III
Shape
Circular
Circular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Modular
Pending | Projector
Pending | Projector
Measures
Ø356x25; Ø452x25; Ø643x25; Ø961x25; Ø1247x25; Ø1502x25; Ø2011x25; Ø2489x25
Ø356x25; Ø452x25; Ø643x25; Ø961x25; Ø1247x25; Ø1502x25; Ø2011x25; Ø2489x25
Standards
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
100º
100º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
50000h
50000h
Light Source
LED Strip
LED Strip
Light projection
Exterior light projection
Exterior light projection
Electrical Supply
24V
24V
Energy Efficiency
E
E
Luminous flux Maintenance
L70B10
L70B10
