4560

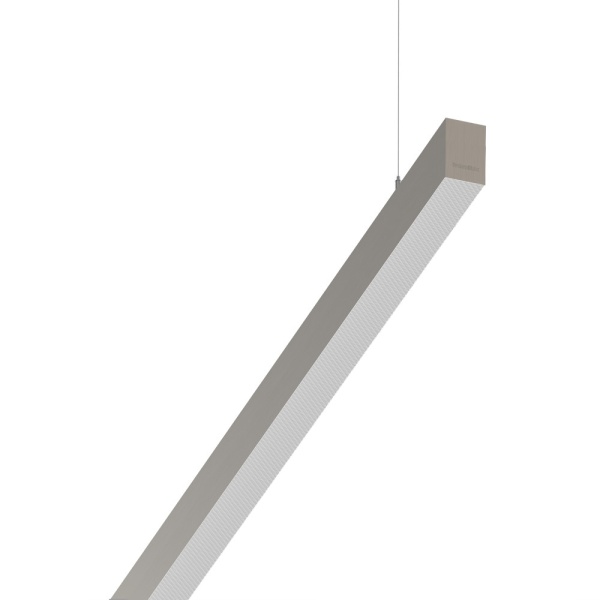

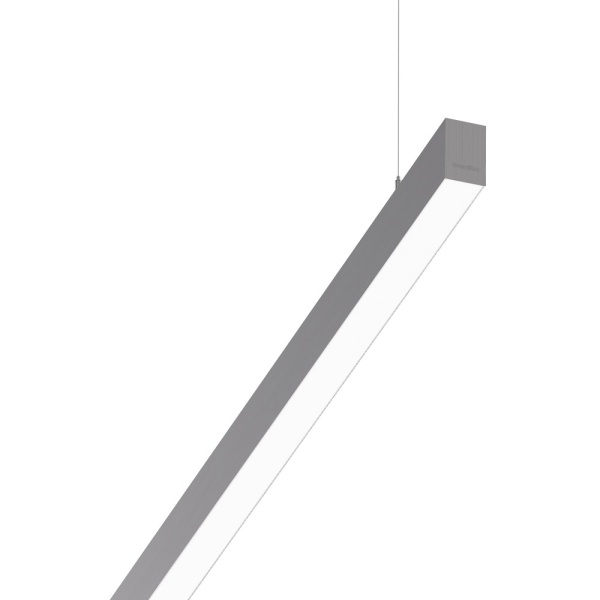

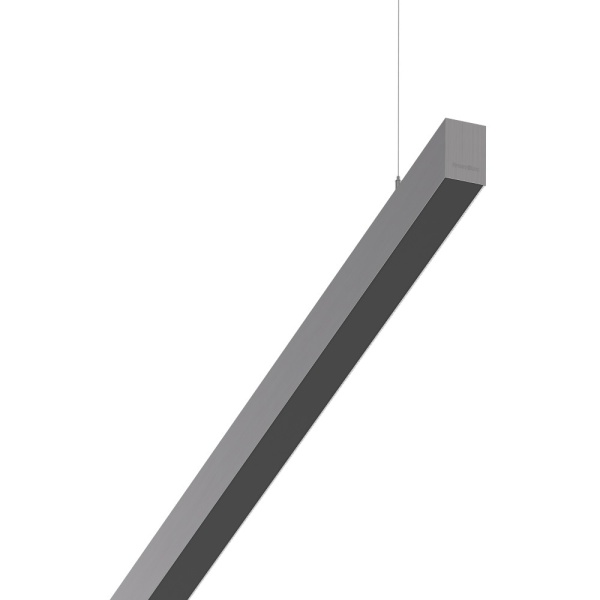

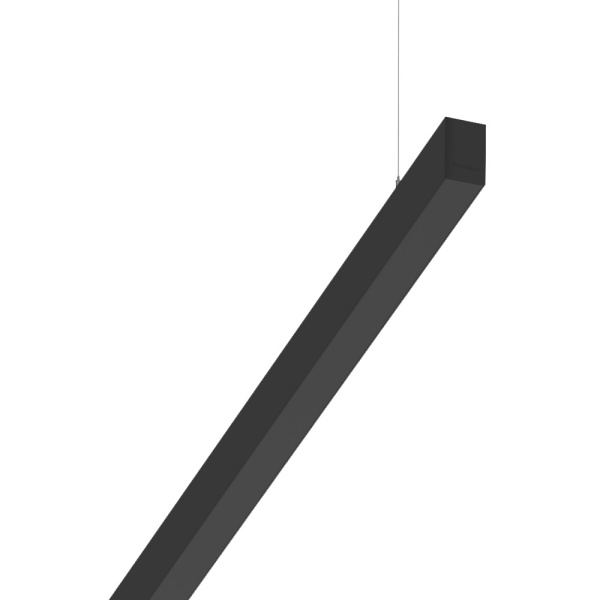

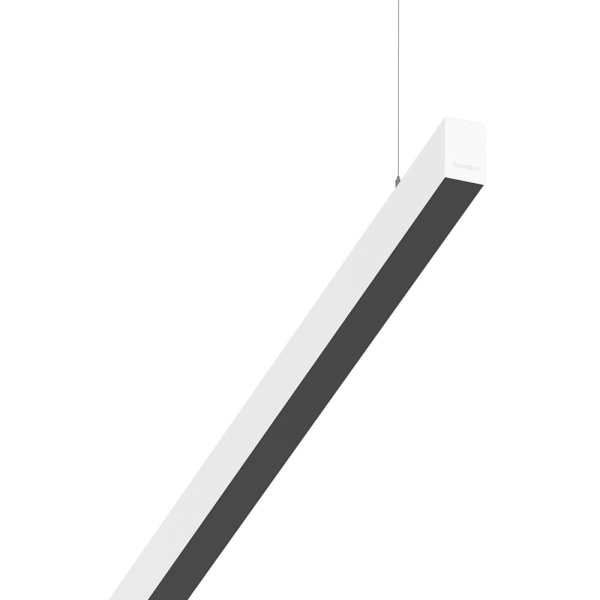

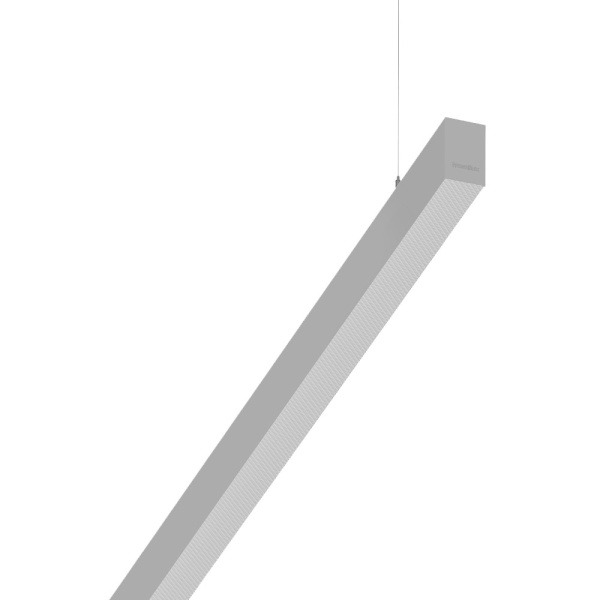

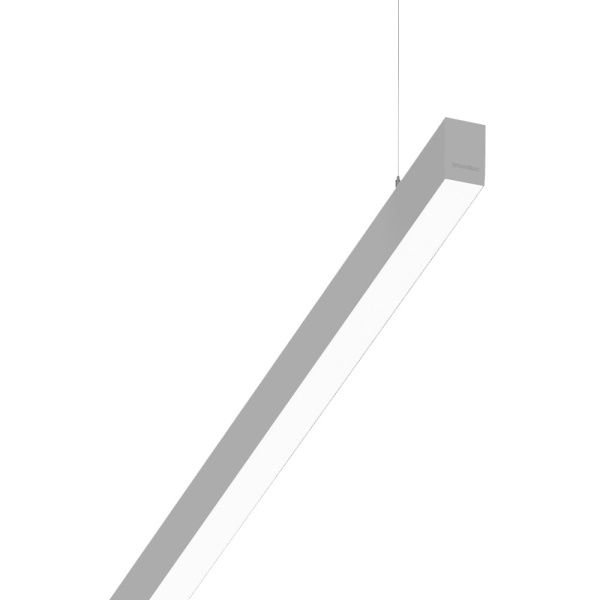

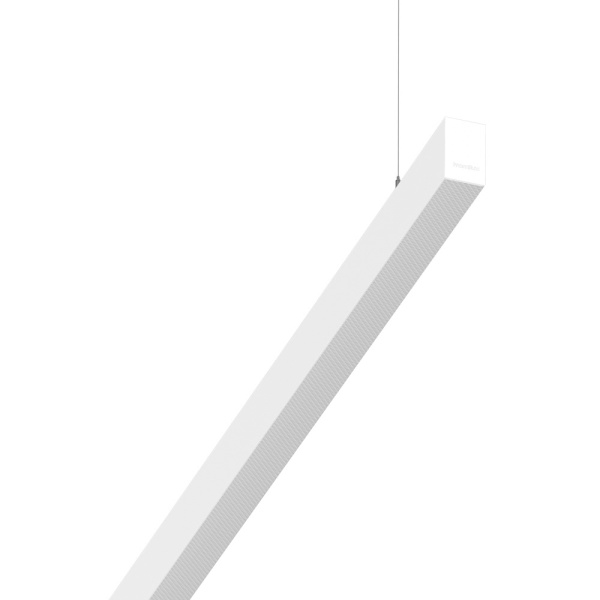

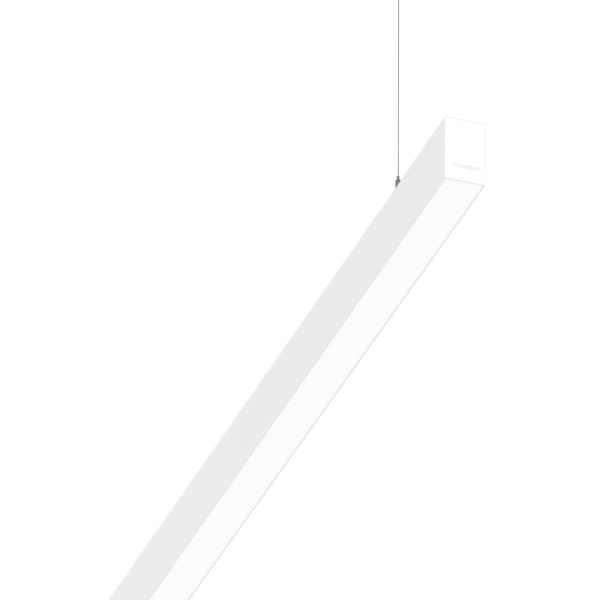

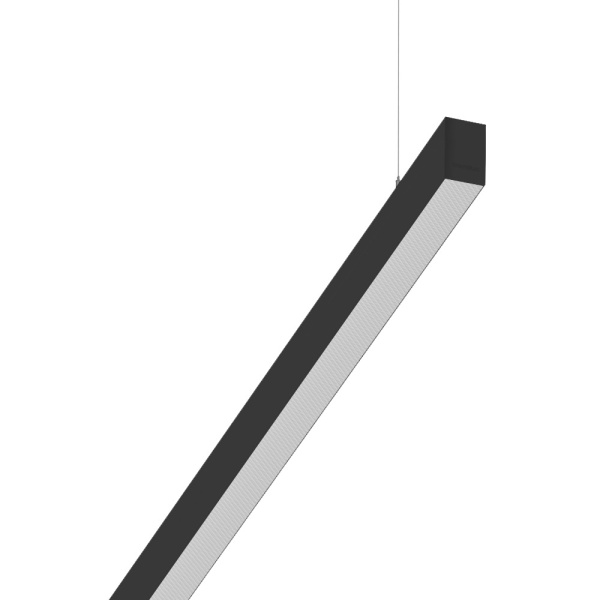

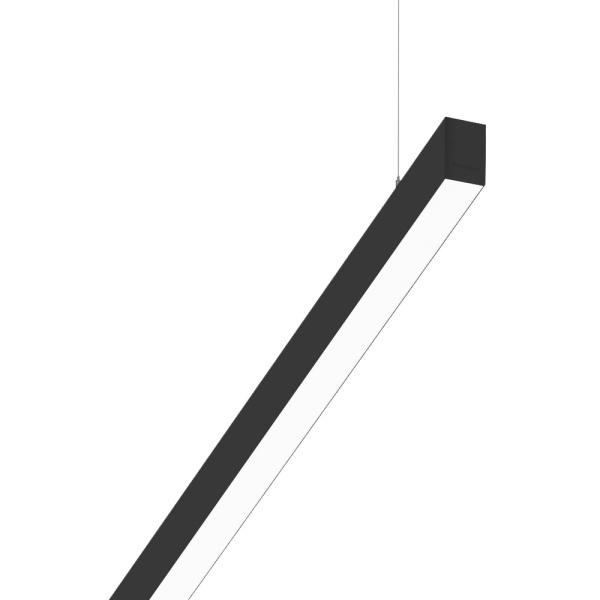

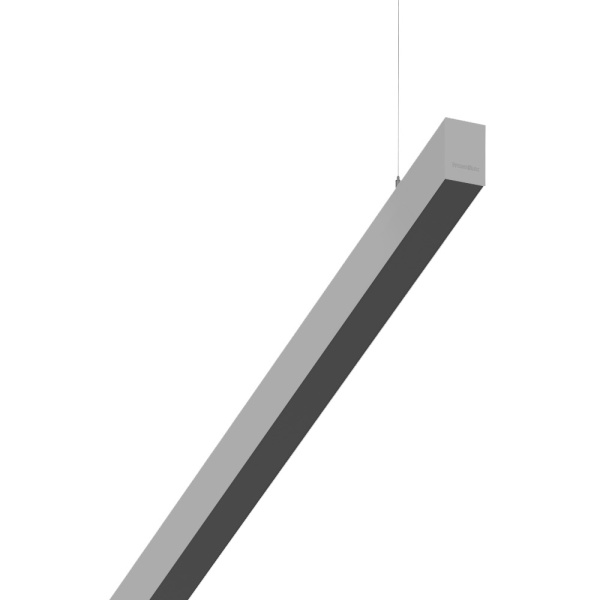

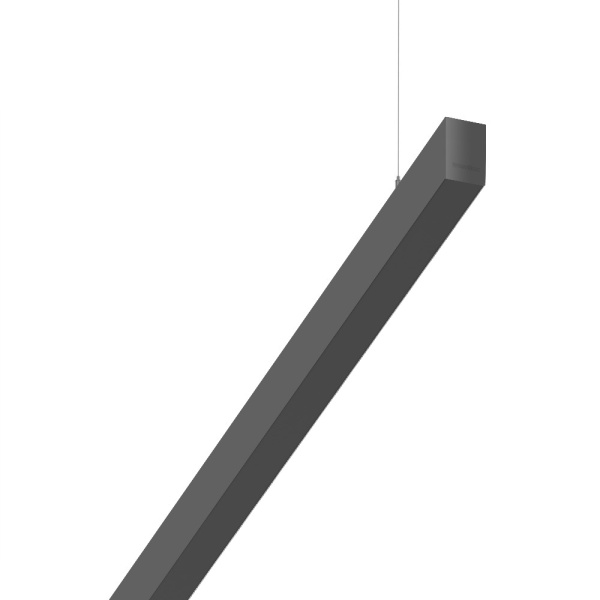

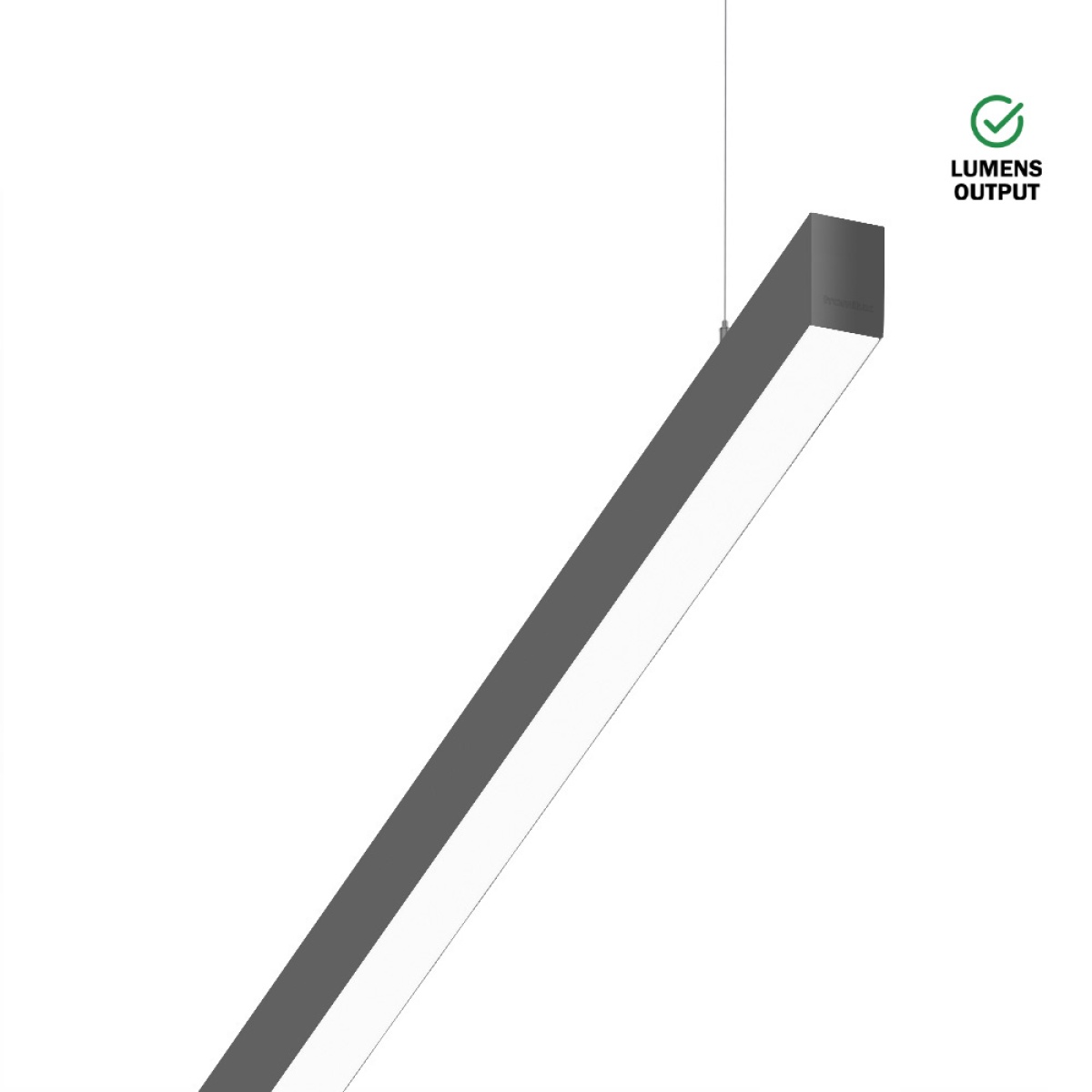

Suspended luminaire for indoor application, with downward and upward light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser in opaline, prismatic or black version. Incorporated driver. Standard ceiling rose: round surface.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Pendant
Ceiling Pendant
IK
IK05
IK05
IP
IP40
IP40
CRI
80 | 90
80 | 90
Kit
Optional
Optional
UGR
Opal <21 | Prismatic <19
Opal <21 | Prismatic <19
Class
I
I
Shape
Rectangular
Rectangular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
65 x L x 130
65 x L x 130
Standards
EN 60598-1:2015, EN 60598-2-1:2012, IEC 60529, EN 50581:2012,
IEC 61000-3-2:2014, EN 61547:2009
EN 60598-1:2015, EN 60598-2-1:2012, IEC 60529, EN 50581:2012,
IEC 61000-3-2:2014, EN 61547:2009
Beam Angle
106,6º
106,6º
Directives
2012/19/UE REEE, 2014/30/UE Electromagnetic Compatibility, 2014/35/UE Low Voltage
2012/19/UE REEE, 2014/30/UE Electromagnetic Compatibility, 2014/35/UE Low Voltage
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Downward and upward light projection
Downward and upward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
