4053

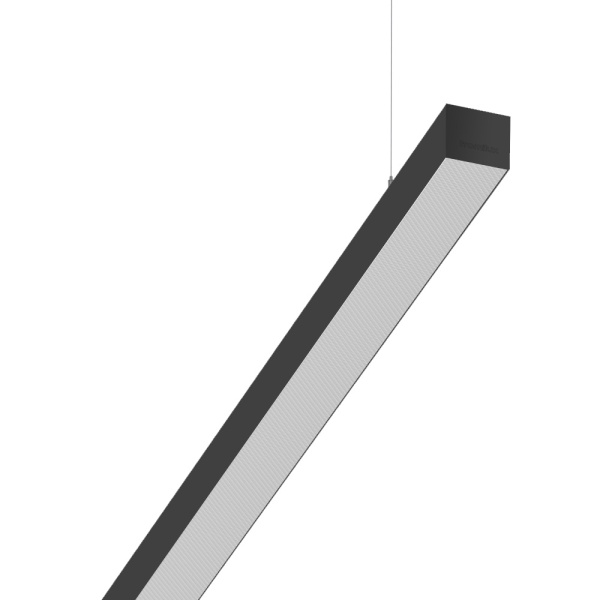

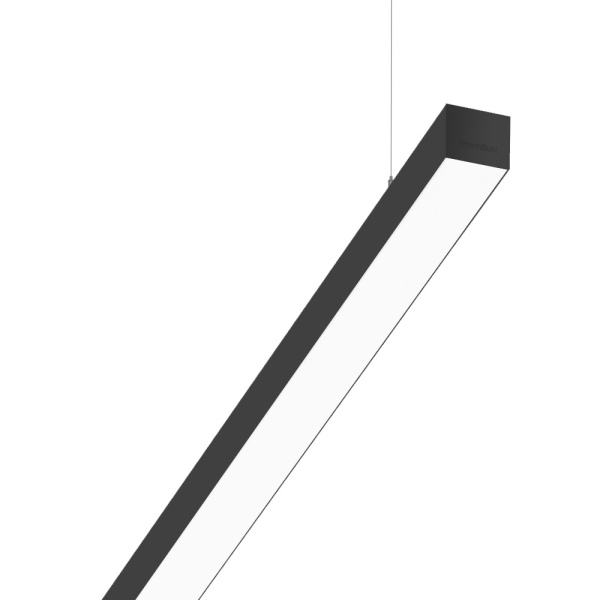

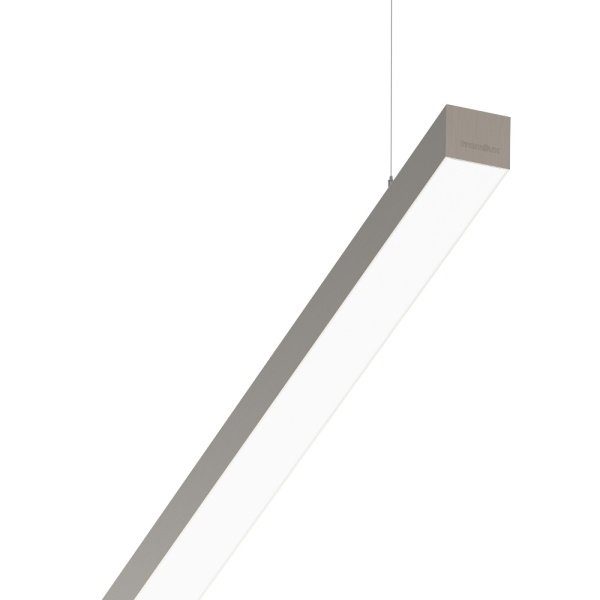

Suspended luminaire for indoor application, with downward light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser. Incorporated driver. Standard ceiling rose: round surface.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Pendant
Ceiling Pendant
IK
IK05
IK05
IP
IP40 | IP20
IP40 | IP20
CRI
80 | 90
80 | 90
Kit
Optional
Optional
UGR
Opal <21 | Prismatic <19
Opal <21 | Prismatic <19
Class
I
I
Shape
Rectangular
Rectangular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
100 x L x 90
100 x L x 90
Standards
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
110,7º
110,7º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
